ONTON's Advanced Self Drilling Anchor System: Tailored Stability Solutions

Self-drilling anchor system

A self drilling anchor system offers a robust solution for precarious ground conditions such as sand, gravel, silt, clays, and soft to medium fractured rock formations. At ONTON, our self-drilling anchor solutions are meticulously crafted to optimize installation, tailored precisely to the unique requirements of each project.

Rock Bolt Types
Precision-in-Detail

Self-drilling anchors

These anchors redefine conventional bolting methods by utilizing a streamlined technique. With a sacrificial drill bit and a hollow rod, they penetrate collapsing soil or loose rock. Post-drilling, cementitious grout or resin is injected into the hollow rod and surrounding cavity, elevating self-drilling anchors to a pinnacle of productivity.

Comprising elements

Comprising elements like a hexagonal nut, bearing plate, extension couplings (if involving multiple anchor rod sections), hollow anchor rod(s), and a sacrificial drill bit, our self-drilling anchor bolts guarantee structural integrity and stability in challenging environments.

ELS10008_1

The applications of ONTON’s self drilling anchor system span across critical sectors:

  • Slope Stabilization
    Unstable rock and soil formations find stability through our self-drilling anchors. The technique’s efficiency in unconsolidated or weathered ground conditions surpasses traditional methods, ensuring swift and uncomplicated installation.
  • Foundations with Micropiles
    Our SDA micropiles, crafted as drilled piles with injected grout and steel reinforcement via anchor rods, suit limited-space sites. Capable of installation in diverse ground conditions, including rock, they accommodate tension and compression loads efficiently, enabling high piling outputs.
  • Tunneling
    For tunnel excavation in overburdened and soft fractured rock conditions, ONTON’s self-drilling anchor system emerge as the most economical solution. They reinforce the tunnel circumference and provide advanced roof support, ensuring safety and stability.

SDA Anchor Components

Hollow Anchor Rods:

Hollow Anchor Rods:

Engineered with a hollow bore for flushing or simultaneous drilling and grouting, our anchor rods boast a durable construction suitable for various applications. Protection against corrosion is offered across our entire range of SDA bars and accessories.
Click Here

Extension Couplings

Extension Couplings:

Featuring a patented design ensuring maximum percussive energy transmission between bars, these couplings minimize energy losses, guaranteeing optimal drilling efficiency.
Click Here

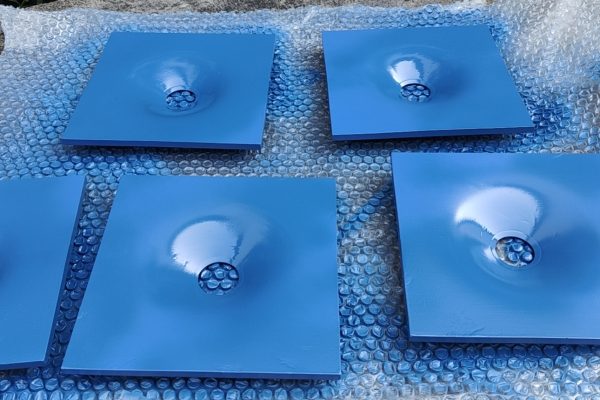

Bearing Plates:

Bearing Plates:

Customized forged steel plates with articulation capabilities in all directions, ensuring adaptability to diverse applications.
Click Here

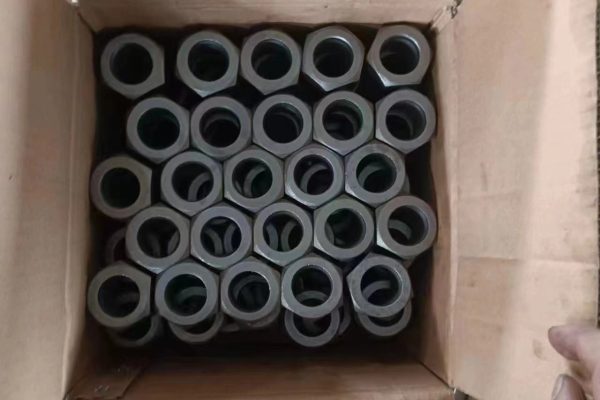

Hexagonal Nuts:

Hexagonal Nuts:

Manufactured from high precision steel, tempered to meet stringent anchor specifications, ensuring reliability and durability.
Click Here

Coupling Adapters, Shanks, and Grout Coupling:

Coupling Adapters, Shanks, and Grout Coupling:

Each component is meticulously crafted and designed to optimize the anchoring process, ensuring durability, precision, and ease of use.
Click Here
